| サムネール | 年 | 篇 | タイトル | 内容 | コメント | イメージ | ファイル |
|

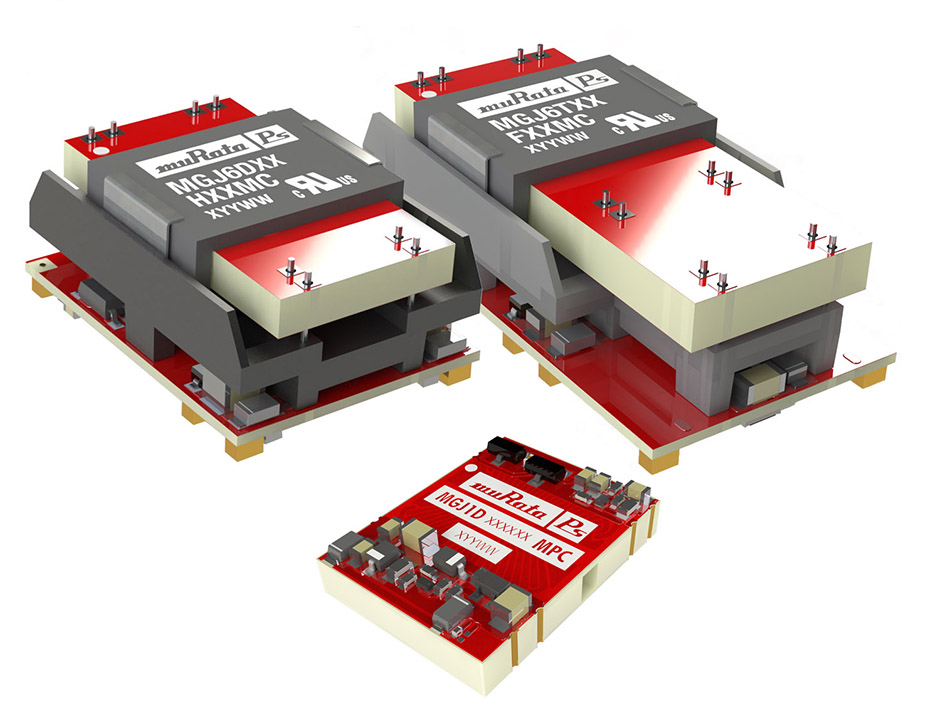

DC–DC Converters for gate driver power | Murata MGJ series DC–DC converters have been designed and tested to withstand high dv/dt and DC link conditions without measurable breakdown within the isolation barrier. Gate drive applications create challenging conditions which are not factored into the design of standard DC–DC converters. For this reason Murata has created a range of converters specifically engineered and tested to ensure the reliability and safety required in gate drive applications: Applications: Motor drives/motion control Solar inverters Welding Medical pump controllers Medical X–ray systems HVAC inversion systems High power AC–DC conversion Electrical powered transportation (Water) pump and valve control | EU-16_MGJ_Group.jpg | ダウンロード |
| High Power High Frequency (HPHF) transformer | The high power levels required by semiconductor products such as Silicon Carbide MOSFETs, creates a demand for high power, high frequency magnetics. Some of the design challenges are so tough, however, that groups of industry and academic experts argue the continuous increase of operating frequency in power electronics systems is not useful, as the magnetics would not be compatible with them. Murata’s proprietary 'pdqb' winding technology allows designers to efficiently reach power and frequency levels never before possible, making Murata a technology enabler for the power electronics industry to venture further into the high frequency, high power conversion sector. | EU-16_Murata_high_power_high_frequency_transformer.mp4 | ダウンロード ムービー再生 |
|
DC–DC Converters for healthcare | Murata’s range of DC–DC converters for healthcare applications offer various levels of medical safety agency recognition in consideration of both the safety of the patient and the operator. They also feature low barrier capacitance to serve the medical application requirement of low leakage current. Applications MRI X–Ray Ultrasound Blood pressure monitors Telehealth and remote health Monitoring systems Infusion pumps CPAP machines Equipment cable isolation Robotics | EU-16_Healthcare_1152709136.jpg | ダウンロード |
| MTU1 – World's smallest isolated 1W DC–DC converter | The MTU1 series with a footprint reduction of over 50% from the previous generation of 1W SMD DC–DC converter footprints in a unique cube footprint, is still the smallest isolated 1W DC–DC converter footprint available. Applications include: Battery powered systems Process control systems Telecom base stations & routers https://www.youtube.com/watch?v=vGbKpPp_yZs |
|

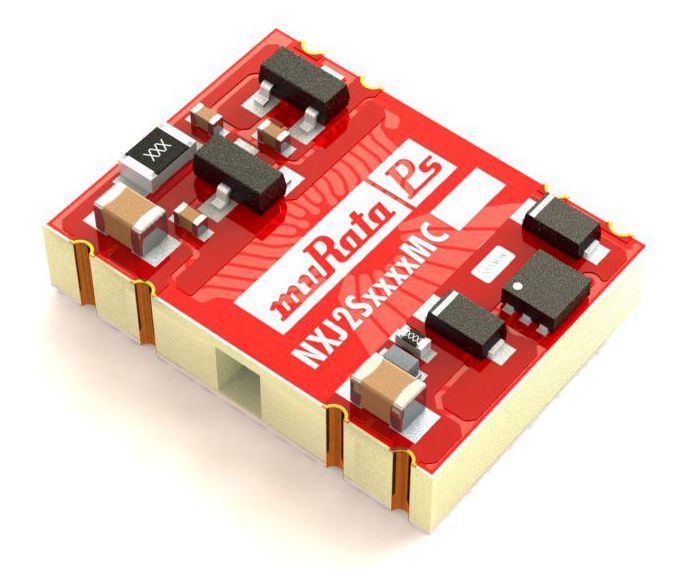

NXJ1 & NXJ – Shaping the future of low power DC–DC converter technology | The NXJ1 & NXJ2 series are lower profile, fully automated manufacture surface mount DC–DC converters. The NXJ1 & NXJ2 series automated manufacturing process with substrate Embedded Transformer, offers increased product reliability and repeatability of performance in a halogen free, iLGA inspectable package. Their unique manufacturing technology offers industry leading levels of reinforced insulation with ultra low isolation capacitance in industry standard footprints. The NXJ1 & NXJ2 series have a MSL rating 2, and are compatible with a peak reflow solder temperature of 260˚C as per J–STD–020, for multiple reflows. Applications: Motor Drives/Motion Control Solar Inverters UPS Battery powered systems Process control systems Healthcare applications | EU-16_NXJ2SxxxxMC.jpg | ダウンロード |
|

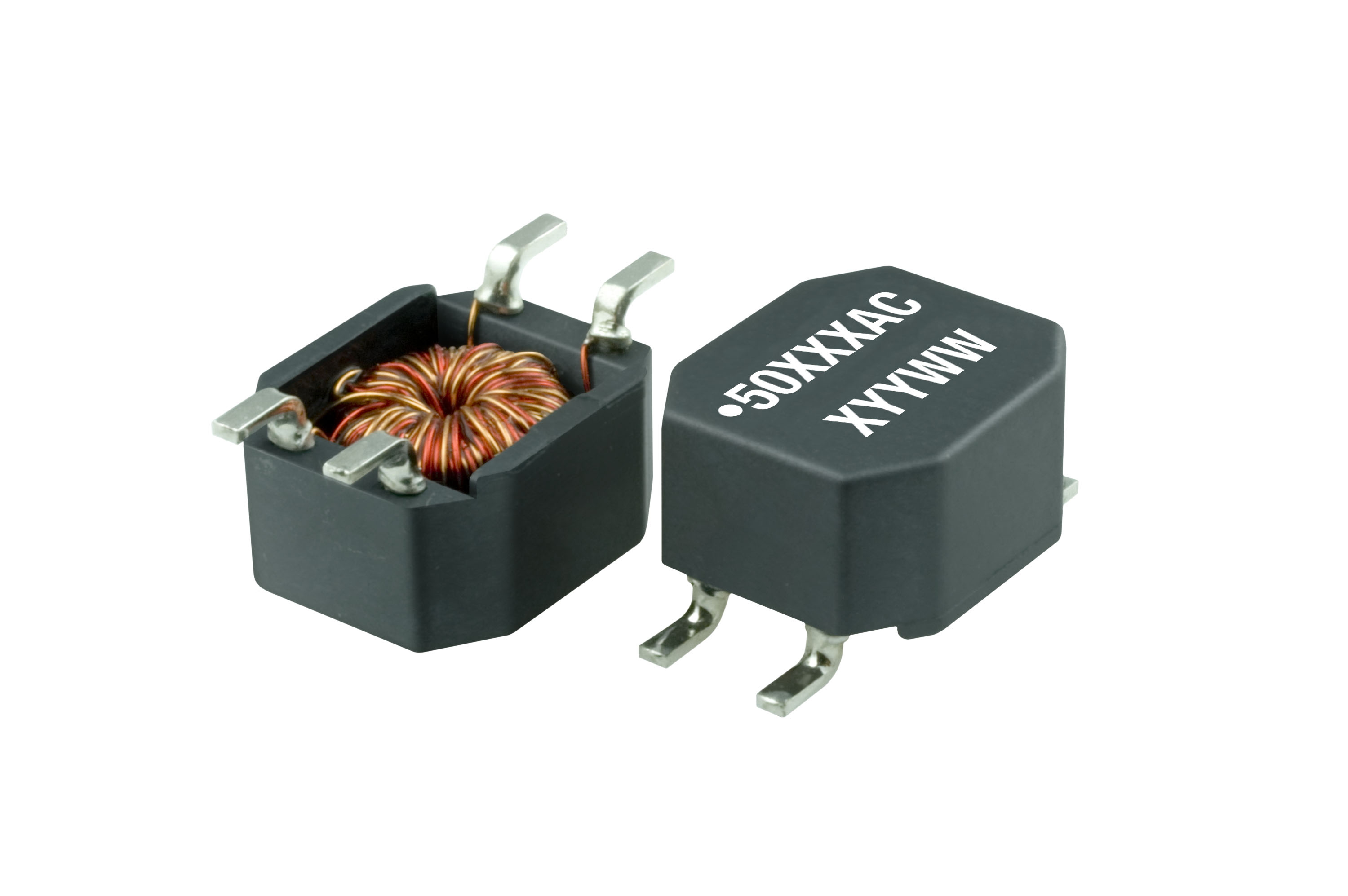

5000A series common–mode–choke | With the ever increasing demand for electronics in automotive applications, Murata’s 5000A series are designed with the utmost quality in mind. Built using bespoke automated manufacturing, in one of our many IATF16949 conforming factories, and meeting AEC–Q200 automotive approval, these common–mode chokes are ideally suited to filtering unwanted noise in CAN bus architectures | EU-16_MPS_5000A_CO_new.jpg | ダウンロード |
