| サムネール | 年 | 篇 | タイトル | 内容 | コメント | イメージ | ファイル |
|

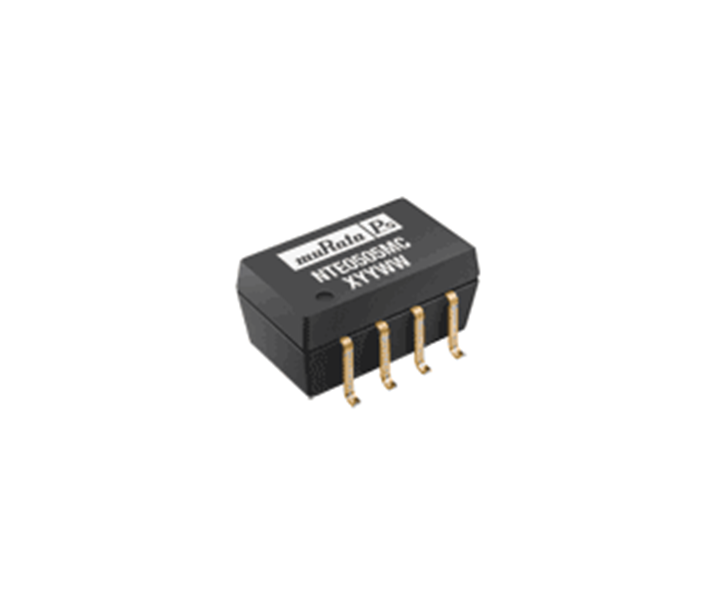

TM DC–DC | The NTE series of miniature surface mounted DC/DC converters employ lead frame technology and transfer molding techniques to bring all of the benefits of IC style packaging to hybrid circuitry. The co–planarity of the pin positions is based upon IEC 191–6:1990. The devices are suitable for all applications where high–volume production is envisioned. | CN-46_Product-1-NTE.jpg | ダウンロード |
|

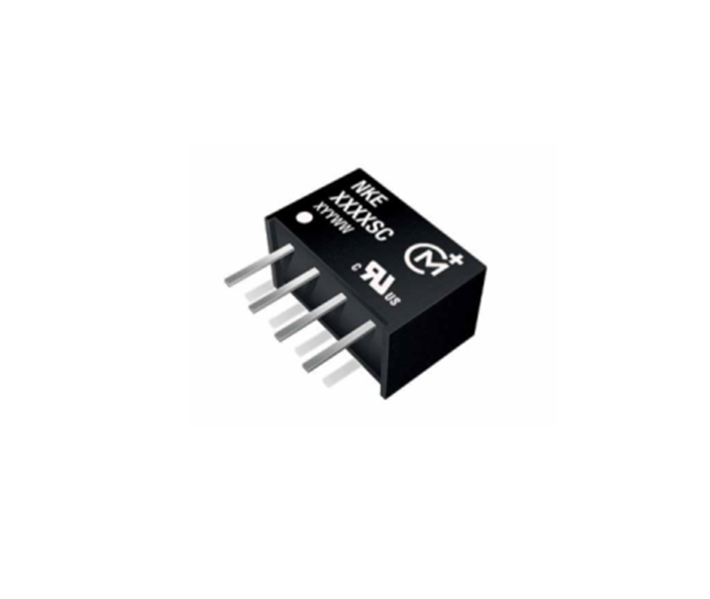

Low Power DC–DC | The NKE sub–miniature series of DC–DC converters is particularly suited to isolating and/or converting DC power rails. The NKE series has a smaller package size, improved efficiency, lower output ripple and 3k VDC isolation capability through state–of–the–art packaging and improved technology. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from –40°C and full 1 watt output at 85°C. | CN-46_Product-2-NKE.jpg | ダウンロード |
|

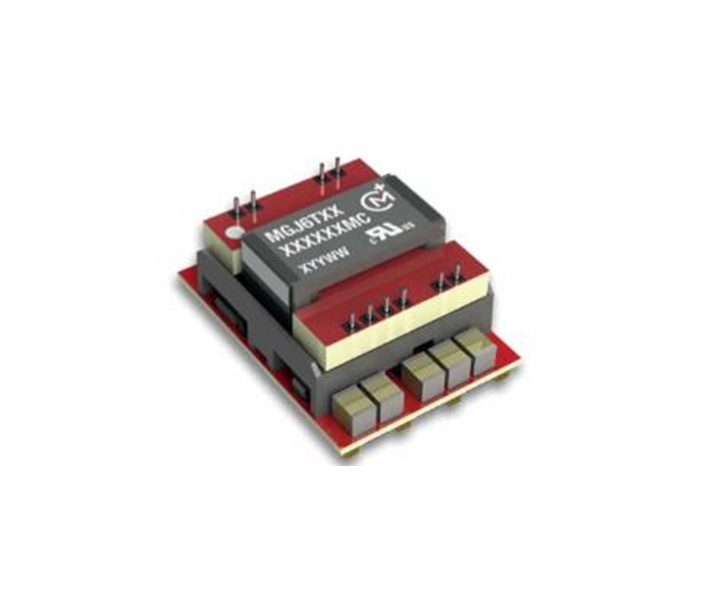

Open Frame DC–DC | Offering configurable dual output voltages of +15V/–10V, +20V/–5V and +15V/–5V, the MGJ6 series of DC–DC converters is ideal for powering 'high side' and 'low side’ gate drive circuits for IGBTs, Silicon and Silicon Carbide Mosfets in bridge circuits. A choice of asymmetric output voltages allows optimum drive levels for best system efficiency and EMI. The MGJ6 series is characterized for high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters. A disable/frequency synchronization pin simplifies EMC filter design. The MGJ6 protection features include short circuit protection and overload protection. | CN-46_Product-3-MGJ6.jpg | ダウンロード |
|

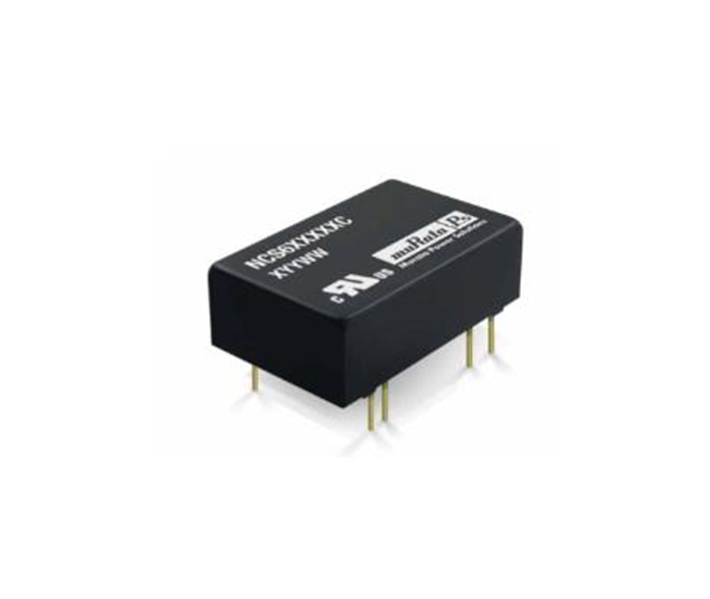

Complex DC–DC | The NCS6 series of DC–DC converters offers single & dual output voltages from input voltage ranges of 9–36V and 18–75V. The NCS6 is housed in an industry standard package with a standard pinout. The NCS6 is packaged in a metal case for improved EMI shielding and is also encapsulated for superior thermal performance. Applications include telecommunications, battery powered systems, process control and distributed power systems. | CN-46_Product-4-NCS.png | ダウンロード |
|

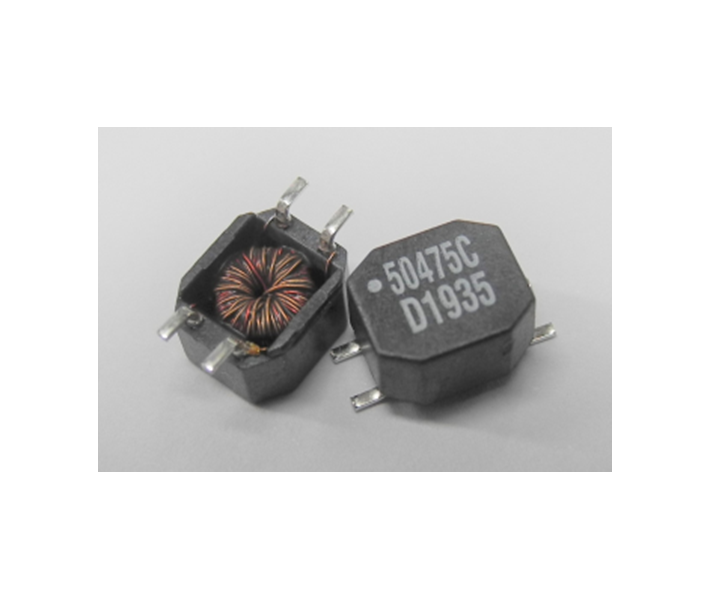

Common Mode Choke | PRODUCT OVERVIEW The 5000 series is a range of surface–mount common mode chokes designed to attenuate up to 100MHz common mode noise where line filtering is required, such as low current switching power supplies and telecom applications. FEATURES: – 0.47mH to 4.7mH – Surface mount – Up to 0.7A IDC – Compact size – RoHS compliant – UL94 V–0 package materials – J–STD–020C reflow | CN-46_Product-5-50475C.jpg | ダウンロード |
|

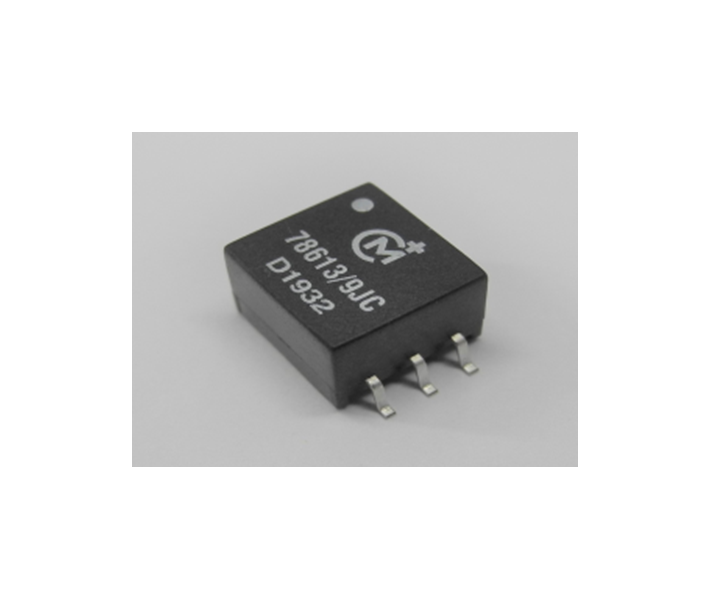

Pulse Transformer | PRODUCT OVERVIEW The 786J series is a comprehensive range of general purpose pulse transformers. Common applications include line coupling, matching or isolating. The devices can also be used in small isolated power supplies and also as common mode chokes in filtering applications. FEATURES – J–STD–020D reflow RoHS compliant – 4 Configurations – Primary inductance to 10mH – 1kVrms isolation – Industry standard pinout – UL 94 V–0 package materials – Low profile – Toroidal construction | CN-46_Product-6-78613_9JC.jpg | ダウンロード |
|

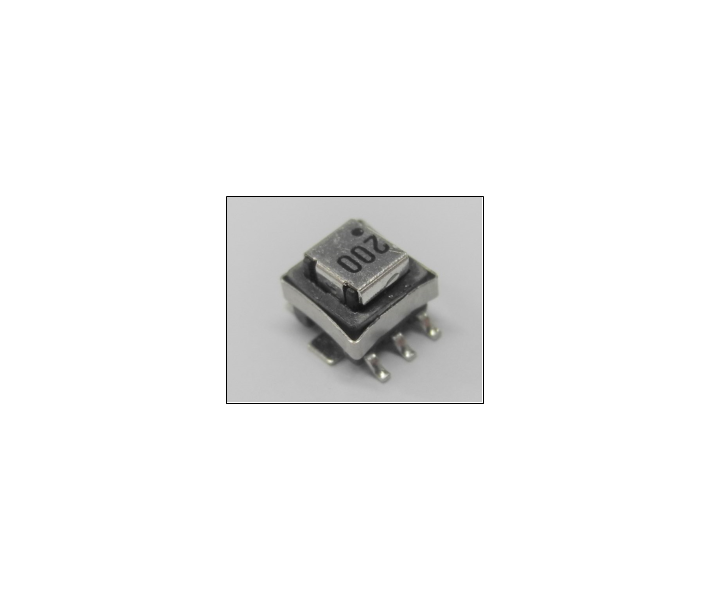

Current Sense Transformer | PRODUCT OVERVIEW The 5300 series of current sense transformers are designed to monitor AC currents. The transformers can be used for high frequency current sensing in applications such as switched–mode power supplies, motor control, and electronic lighting ballasts. FEATURES – RoHS compliant – Primary current rating 10A – 20 to 200 turn variants – Primary to secondary isolation 500Vrms – 50kHz–500kHz frequency range – Surface mount – Industry–standard footprint – UL94 V–0 package materials – J–STD–020C reflow | CN-46_Product-7-53200C.jpg | ダウンロード |
|
High Current Inductor | PRODUCT OVERVIEW The 3000D series are a range of 2–phase high–current, surface–mount bead inductors, suited to POL applications. The products are designed for VRMs. FEATURES – Low–profile – Surface–mount design – Inductance range from 90nH to 155nH – Rated current up to 80Apk – Custom inductance values available – RoHS compliant – J–STD–020 D.1 reflow | CN-46_Product-8-30900DC.png | ダウンロード |
