| サムネール | 年 | 篇 | タイトル | 内容 | コメント | イメージ | ファイル |
|

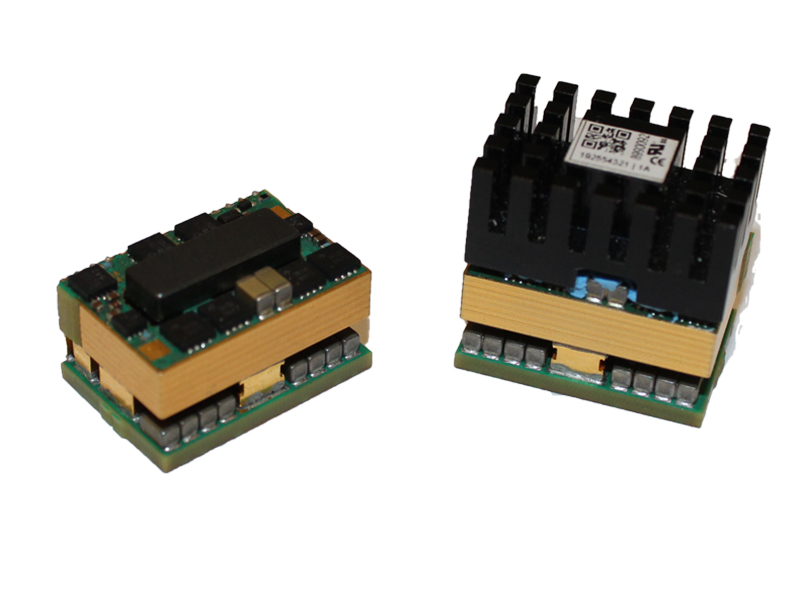

WP541 Series | • Provides Processor and FPGA power from a 48–54V source • Unique LGA package provides excellent thermal performance • 54V input with 1V/100A output. Can be used in parallel with other units for increased output current. • Provides greater end–to–end efficiency than traditional Point of Loads (POL) • PMBus communication • Integrated magnetics | CN-45_WP541_Series.jpg | ダウンロード |
|

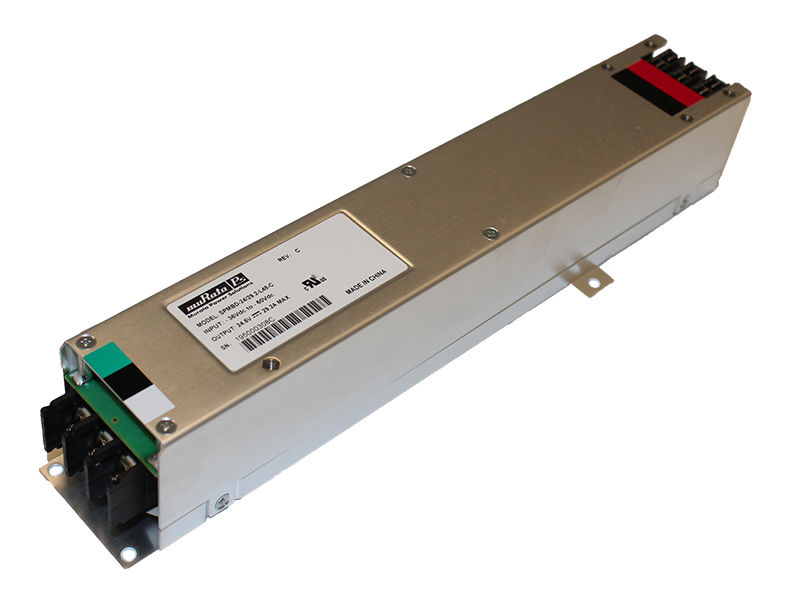

SPMBD Module | • Used in telecommunications and 5G cellular base stations • High efficiency, up to 95% • Meet GR–1089–CORE requirements for telephony • Designed for use over a wide temperature range | CN-45_SPMBD.jpg | ダウンロード |
|

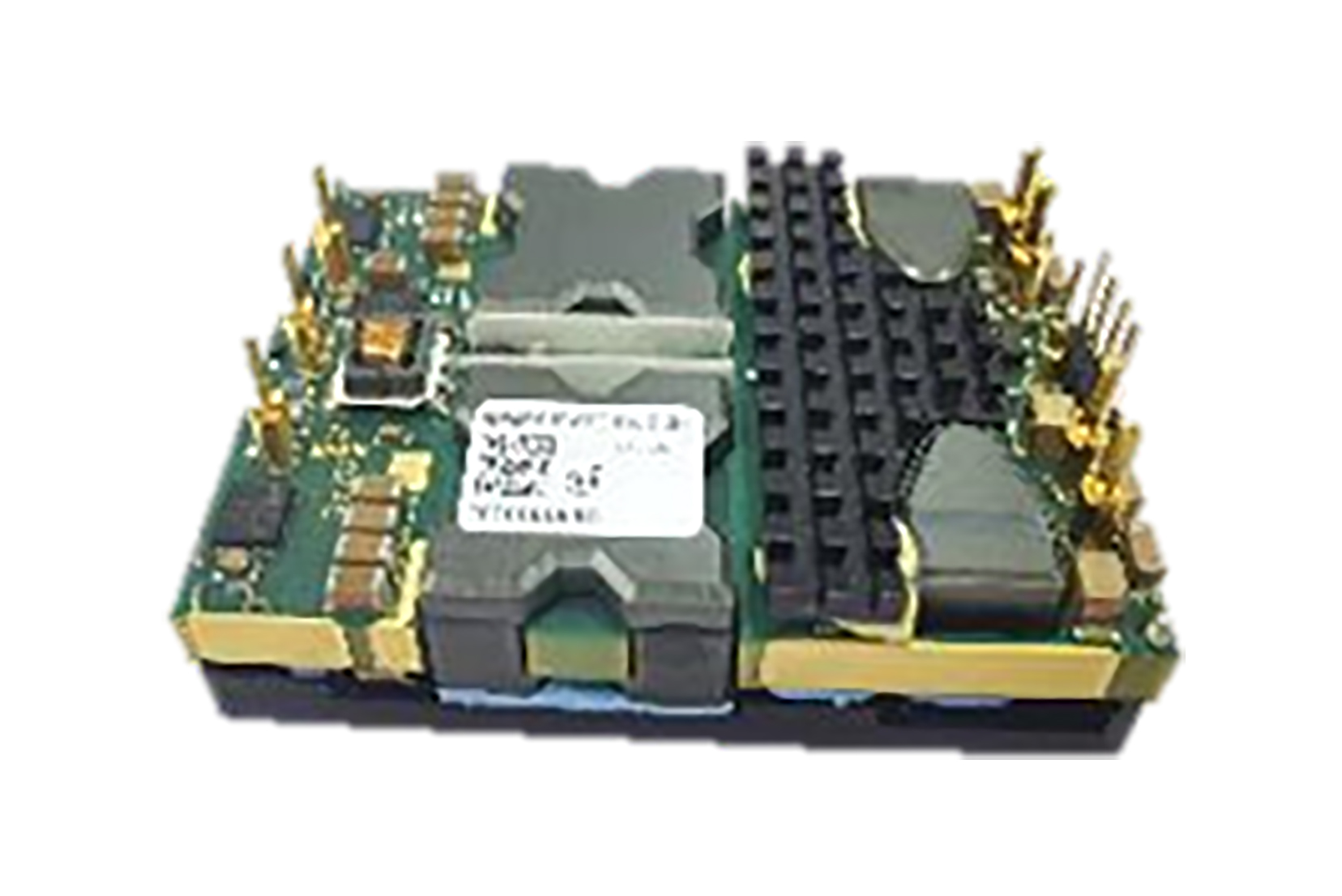

MPQ Series | • Used in networking and computing • 400W, 700W and 1kW • High efficiency up to 96.5% • Maximum power can reach 1000W in an industry standard 1/4 brick • Designed for use over a wide temperature range • PMBus communication features including black box capability • 2250Vdc I/O isolation • Basic insulation system • Meets IPC9592 standard | CN-45_MPQ.jpg | ダウンロード |
|

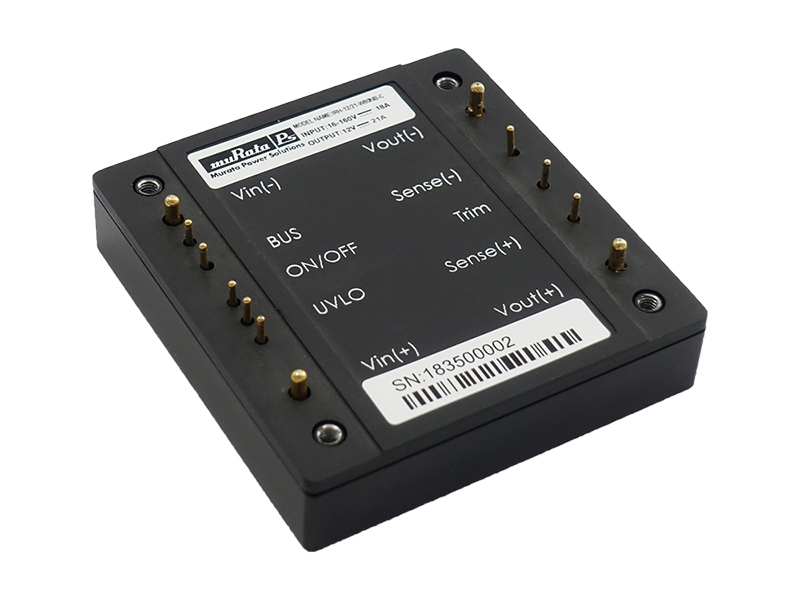

IRH/IRQ W80 Series | • Used in Railway and Transportation Markets • 16V – 160V DC input • 12V, 24V, 48V/54V @ 300W outputs • Compliant to EN50155, EN45545, and EN50121 railway standards • Environmentally qualified • –40°C to +70°C operating temperature range (+85°C for 10 minutes) | CN-45_IRHW80.jpg | ダウンロード |
