| サムネール | 年 | 篇 | タイトル | 内容 | コメント | イメージ | ファイル |
|

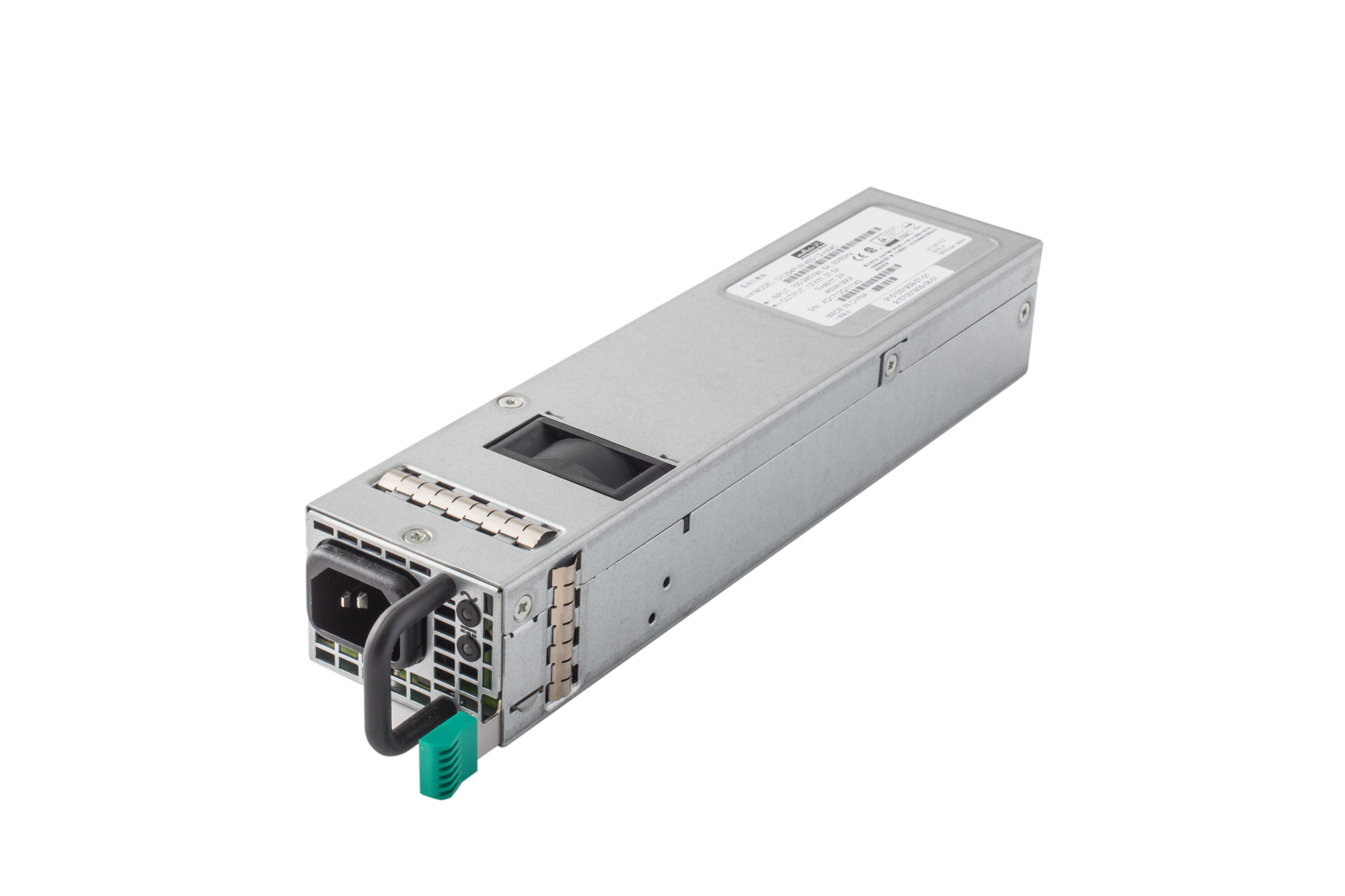

D1U54 Series – Low Power AC & DC | D1U54 Low Power series are high efficiency with power factor corrected front end power supplies. FEATURES: Input: 90 to 264Vac, 40 to 72Vdc Output: 12Vdc/37A, 12Vdc/54A, 12Vdc/66A Standby: 12Vdc/2A or 5V/3V3 output Power: 450W, 650W, 800W Efficiency: Platinum (Titanium @ 800W) | CN-44_D1U54P_lowpower.jpg | ダウンロード |
|

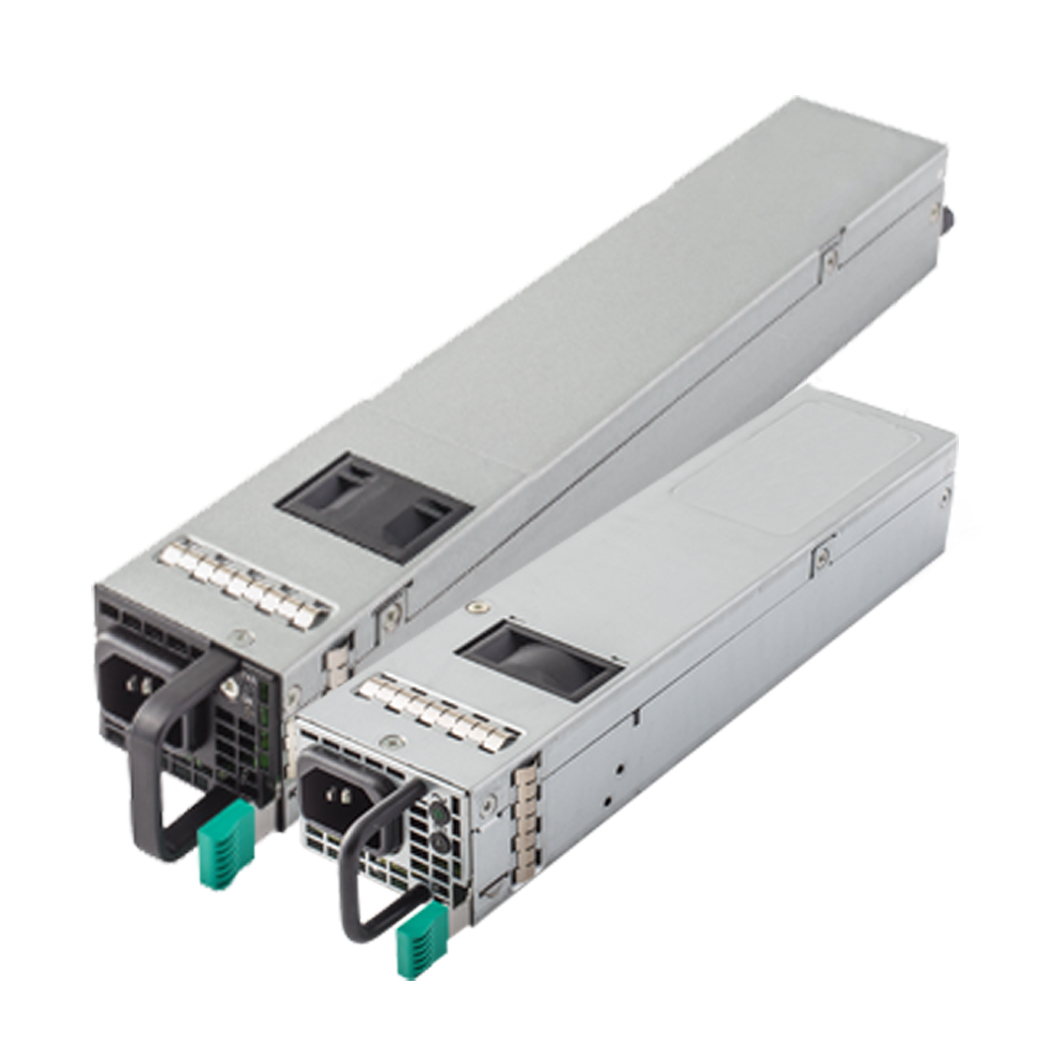

D1U54 Series – Multiple Input Designs | D1U54 Multi Input Power series are high efficiency with power factor corrected front end supplies. FEATURES: Input: 90 to 264Vac, 40 to 72Vdc, 230 to 400Vdc Power: 1200W, 1300W, 1500W, 2000W @ 12Vdc Standby: 3.3Vdc/3A or 5Vdc/3A min Efficiency: Platinum | CN-44_D1U54_multiple.jpg | ダウンロード |
|

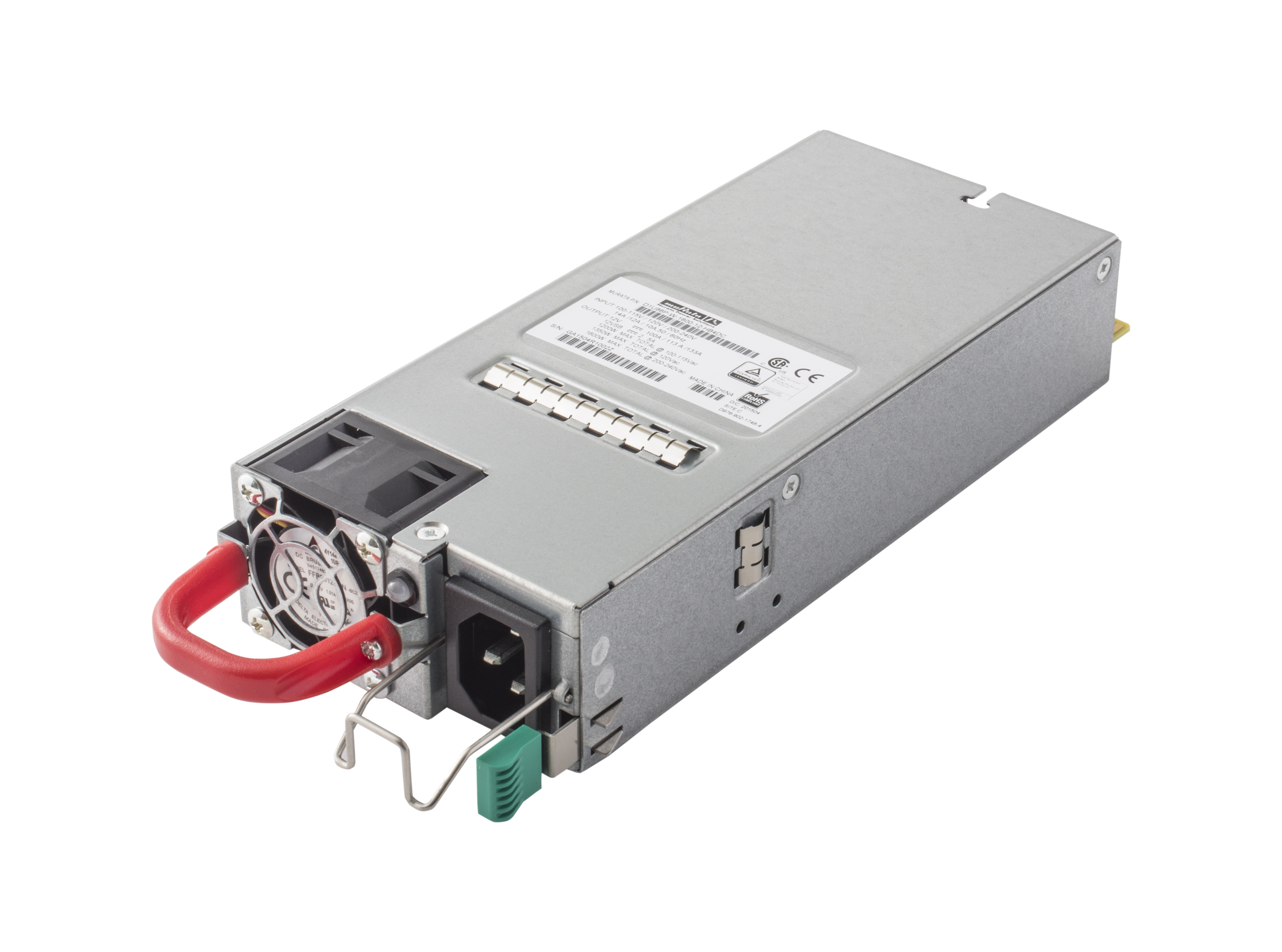

D1U86 Series – AC & DC Input | D1U54 Multi Input Power series are high efficiency with power factor corrected front end supplies. FEATURES: Input: 90 to 264Vac, 40 to 72Vdc Power: 800W, 1600W, 2200W @ 12Vdc Standby: 12Vdc/2.5A Efficiency: 800W: Titanium 1600W: Platinum/Titanium 2200W: Platinum | CN-44_D1U86P.jpg | ダウンロード |
|

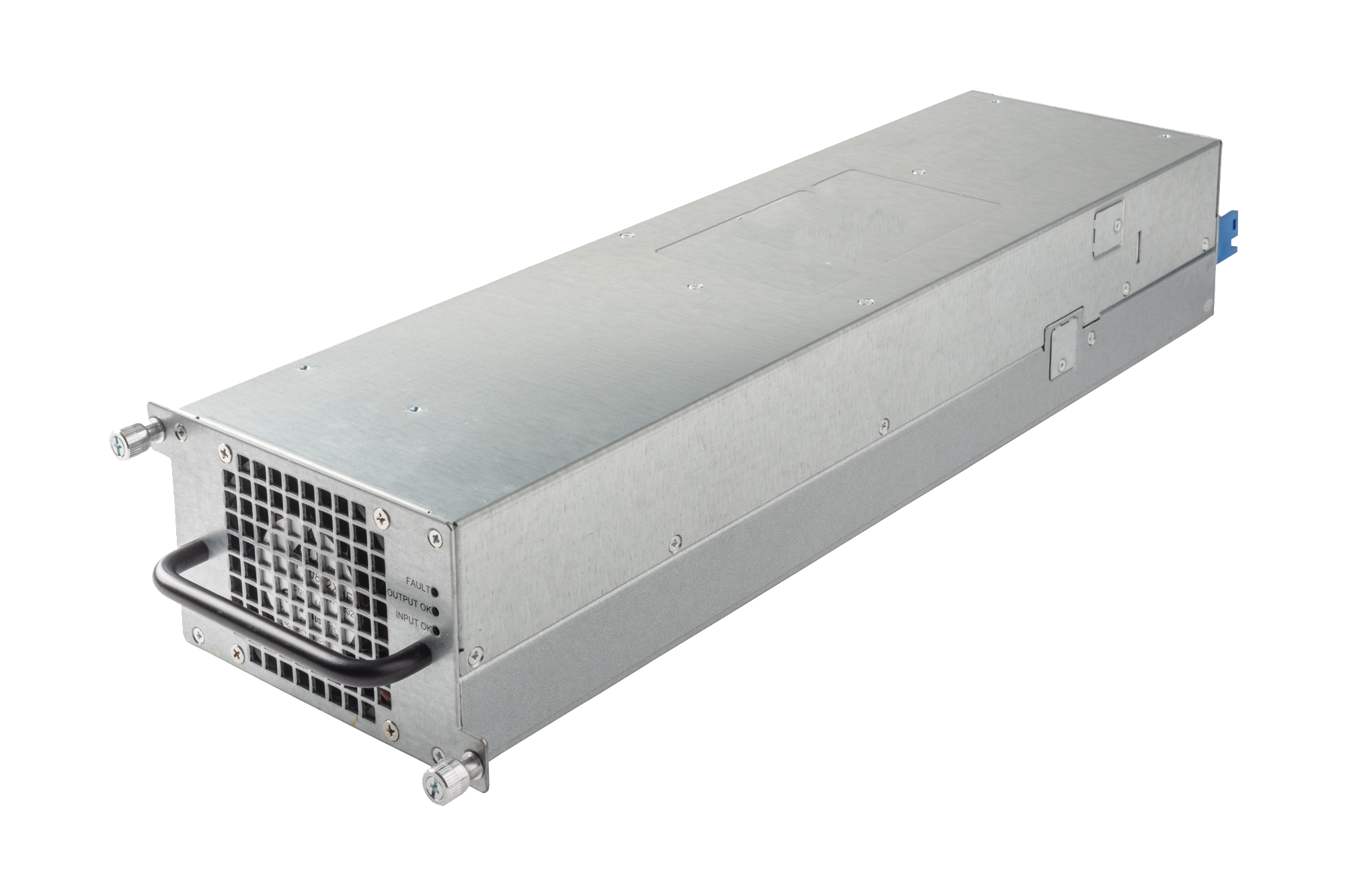

D2U5T Series – 3 Phase Products | 3 Phase Input products for industrial high power system application FEATURES: Input: 320 to 528Vac, 3–Phase Delta or Wye 180 to 305Vac at 3500W Output: 41Vdc/170A; D2U5T–H3–7000–41–HU3C 54Vdc/130A; D2U5T–H3–7000–54–HU4C Standby: 3.3Vdc/6A or 5Vdc/4A (User Selectable) Power: 7000W Max | CN-44_D2U5T.png | ダウンロード |
|

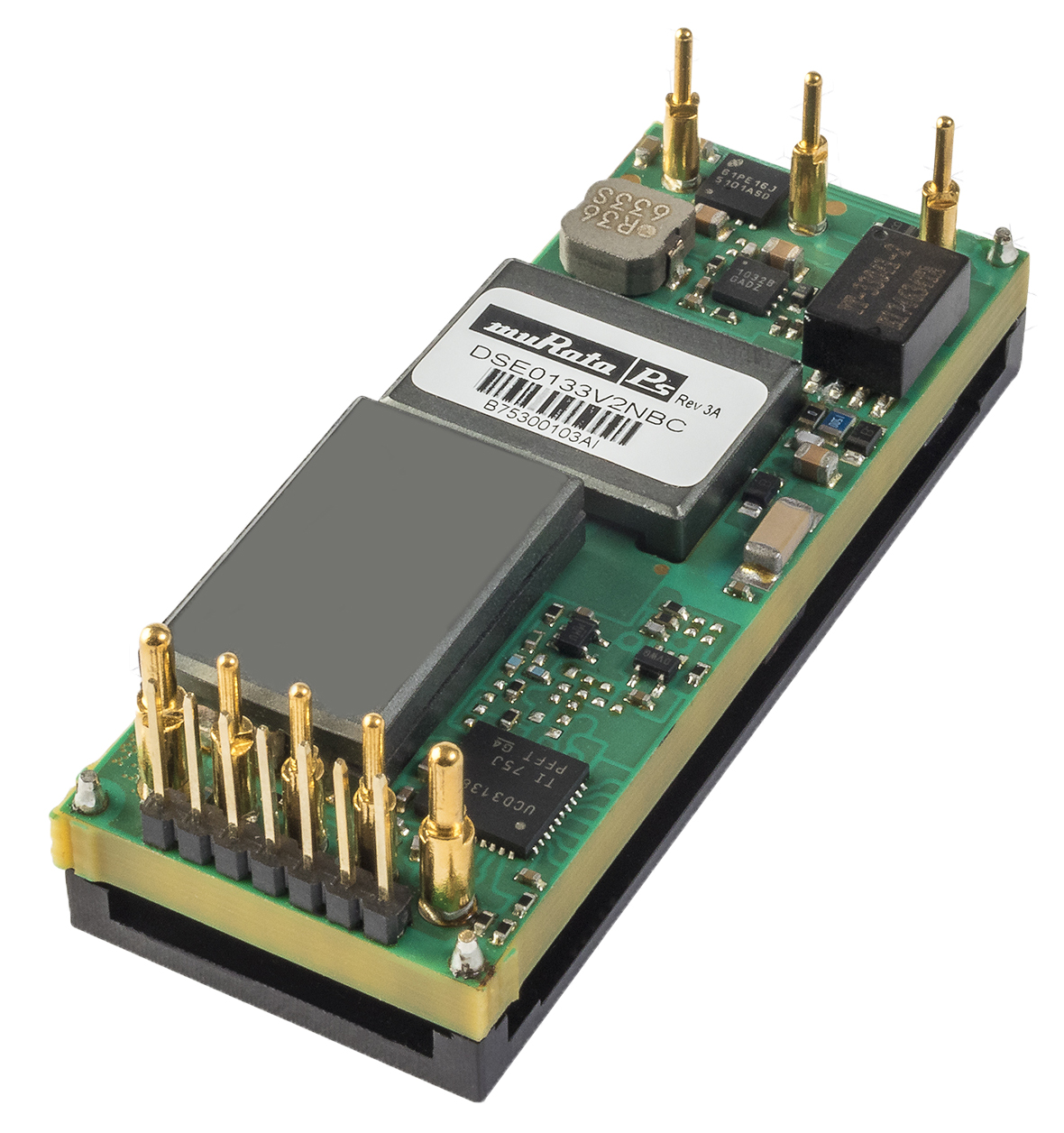

DSE 400W 1/8th Brick DC–DC Converters | The DSE Series are 12V output, 400W industry standard eighth bricks with a DOSA compliant digital interface that supports the PMBus standard for communication and control. Features: • Droop load sharing option for paralleling up to three modules in some of the most power demanding applications • Meets the international TNV standard for Input Voltage with a 36–75Vin range • Provides 2250Vdc isolation for use in Power over Ethernet (PoE) applications • Target applications include telecommunications, networking, wireless, pre–amplifiers, industrial, and test equipment | CN-44_DSE.jpg | ダウンロード |
|

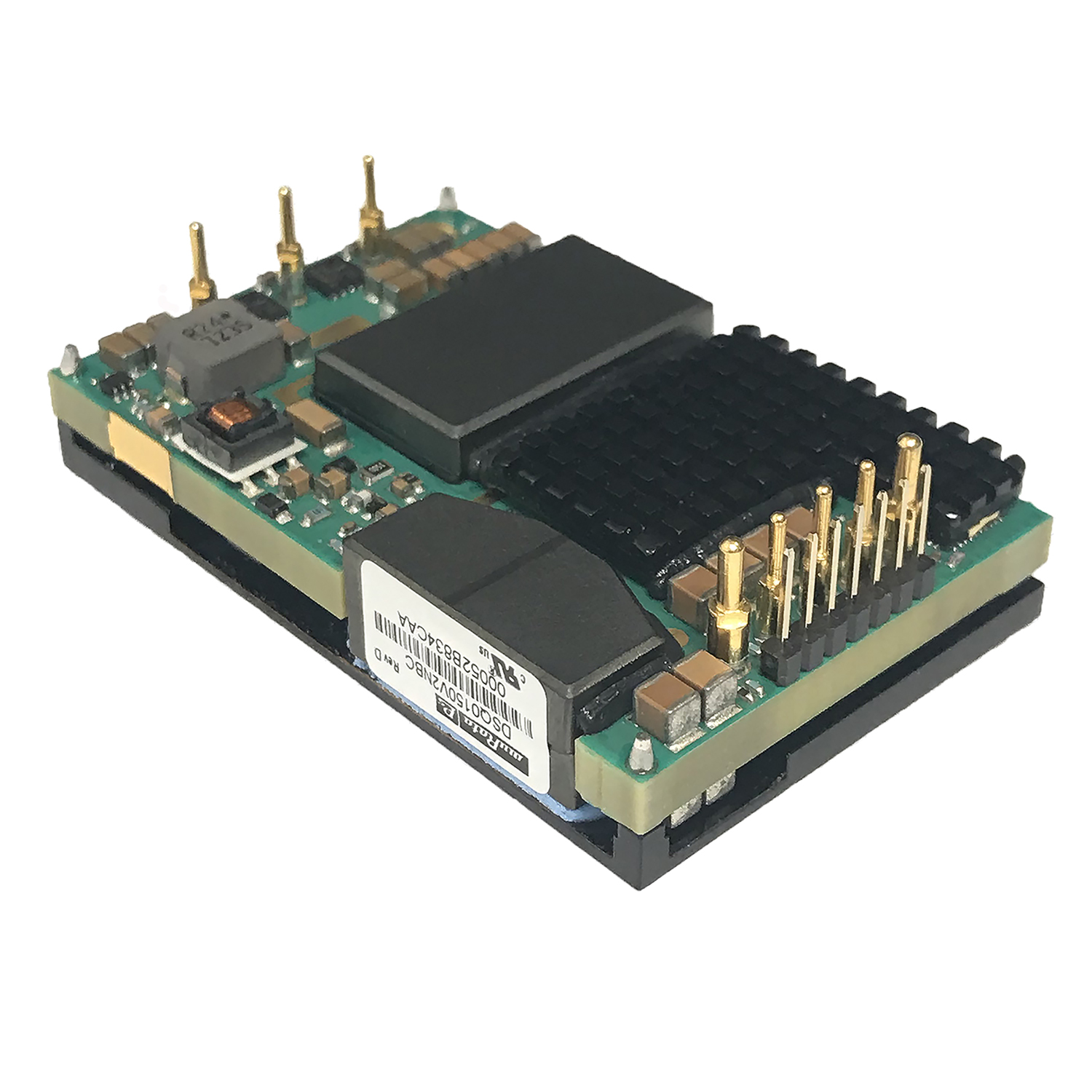

DSQ 600W 1/4 Brick DC–DC Converters | The DSQ Series are 600W, DOSA compliant, 12V output, digital industry standard quarter–brick DC–DC converters. Features: • Designed for high reliability applications based on a 32–bit ARM processor that supports the latest PMBus commands for digital control and telemetry functions • Support the full ‘TNV’ input range of 36 – 75V, with a typical efficiency of 96 % @ full load 48Vin • Designed to support droop mode current sharing of multiple modules for increased power output with tight load sharing • Provides 2250 Vdc isolation, with a functional insulation system • Target applications include, telecommunications networking equipment, computing equipment, wireless base stations, PoE systems, MicroTCA, fan trays and test equipment | CN-44_DSQ.jpg | ダウンロード |
|

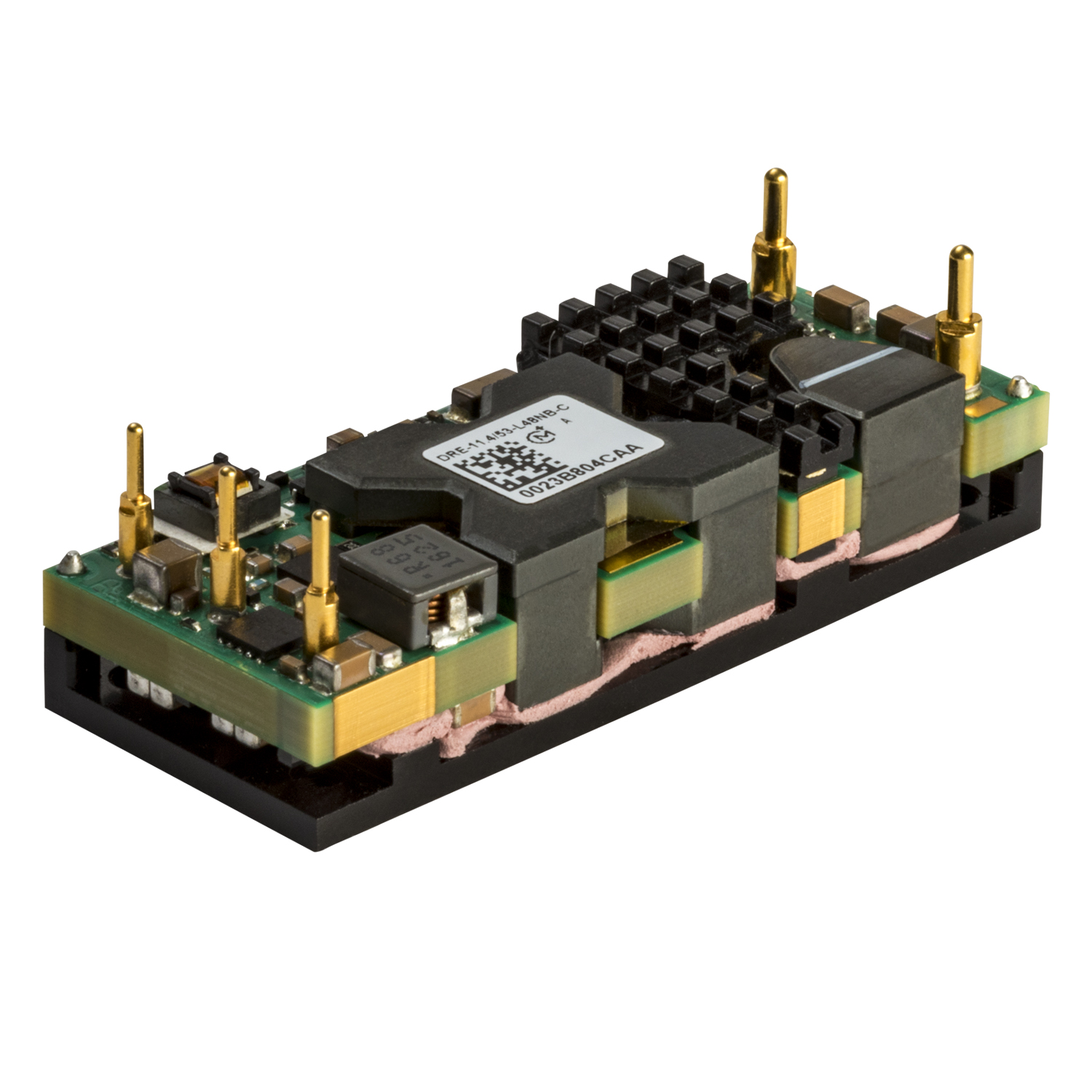

DRE 600 Watt 1/8th Brick DC–DC Converters | The DRE Series are Intermediate Bus Converters (IBC) that address the growing power requirements of networking and telecommunications infrastructure equipment. Features: • Delivers 96 percent efficiency, the highest in the industry at this power output level and small package size • Industry standard DOSA 5pin eighth brick package • 36–60Vdc input voltage range (50V nominal) • Integrated baseplate design • 2,250Vdc isolation • Target applications include networking and telecommunications, communications equipment, routing, computing, and network security | CN-44_DRE.jpg | ダウンロード |
|

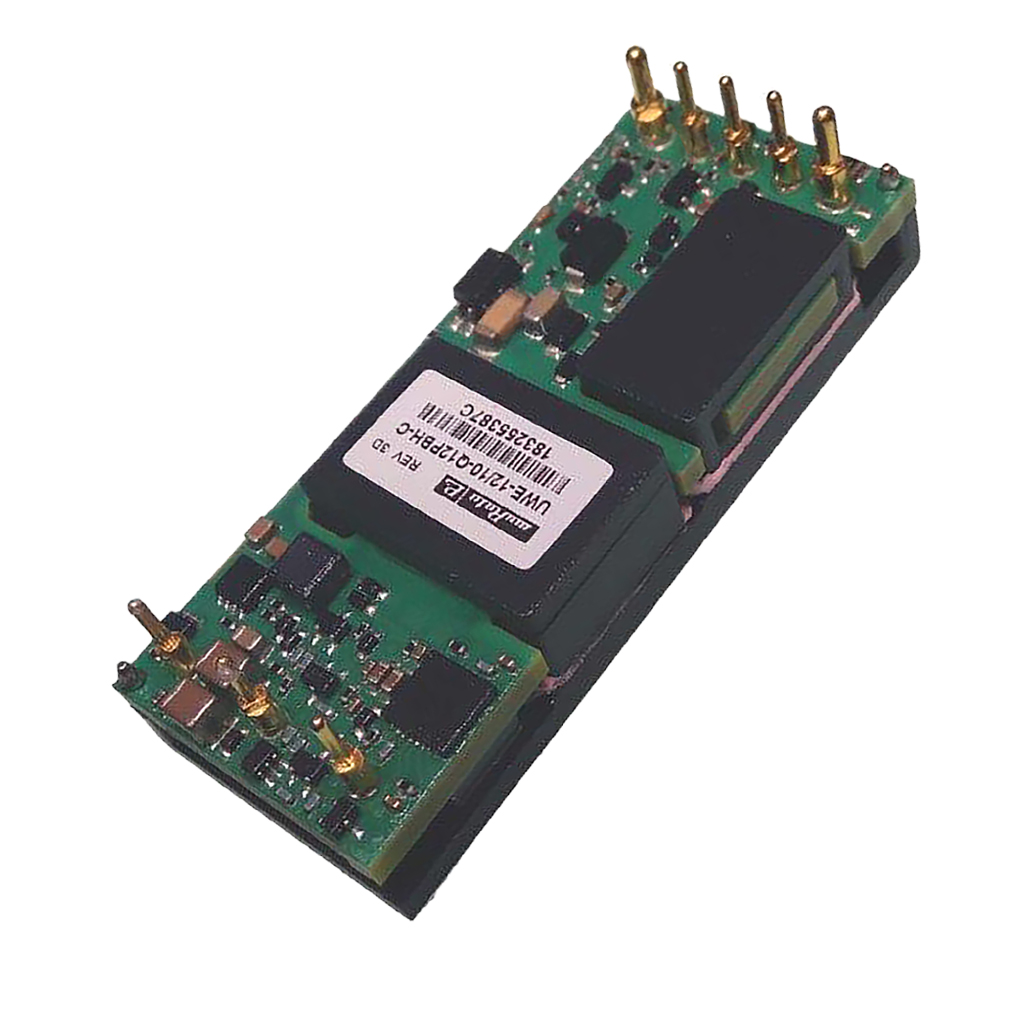

UWE 120W 1/8th brick DC–DC Converters | The UWE Series are 120W DC–DC converters that provide industry leading power, density, and efficiency using the latest technology for fixed frequency switching power supply architectures. • Open frame DOSA compliant industry standard eighth brick • 9V to 36V input voltage range • Suitable for 12, 18, 24 & 28V systems • Optional baseplate • 92% efficiency • 2,250 Vdc isolation Target applications include networking & telecommunications, industrial & rail markets, base stations for wireless communications, industrial controls and signaling, entertainment, lighting, and signs, and computing. | CN-44_UWE.jpg | ダウンロード |
